Equipment Gallery

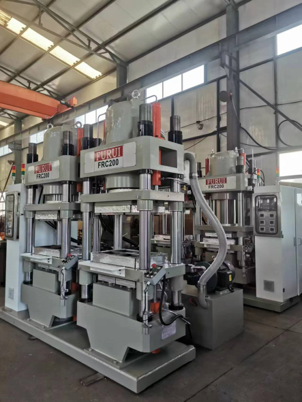

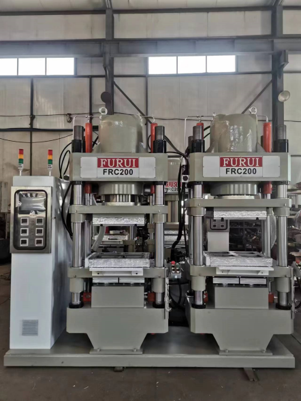

| 200 tons proportional hydraulic press(Double) | |
|---|---|
| Rated pressure | 2000 KN |
| Motor power(single unit) | 11 KW |
| Heating power(single unit) | 14.8 KW |
| Maximum pressure of liquid | 20.0 MPa |
| Maximum stroke of hydraulic press | 580 mm |
| The Height of the table from the ground | 1000 mm |
| Hotplate size | 460*520 mm |
| Master cylinder diameter | 360 mm |
| Master cylinder fast-rise speed | 100 mm/sec |
| Master cylinder slow-rise speed | 4 mm/sec |
| Maximum opening distance of the press | 570 mm |
| Dimensions | 2780*2000*2540 mm |
| Total mass of the equipment | 12 T |

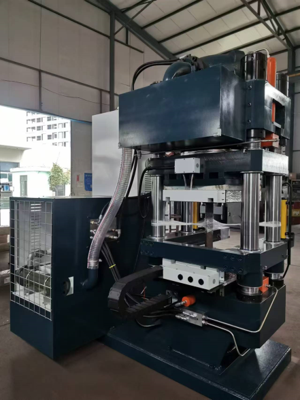

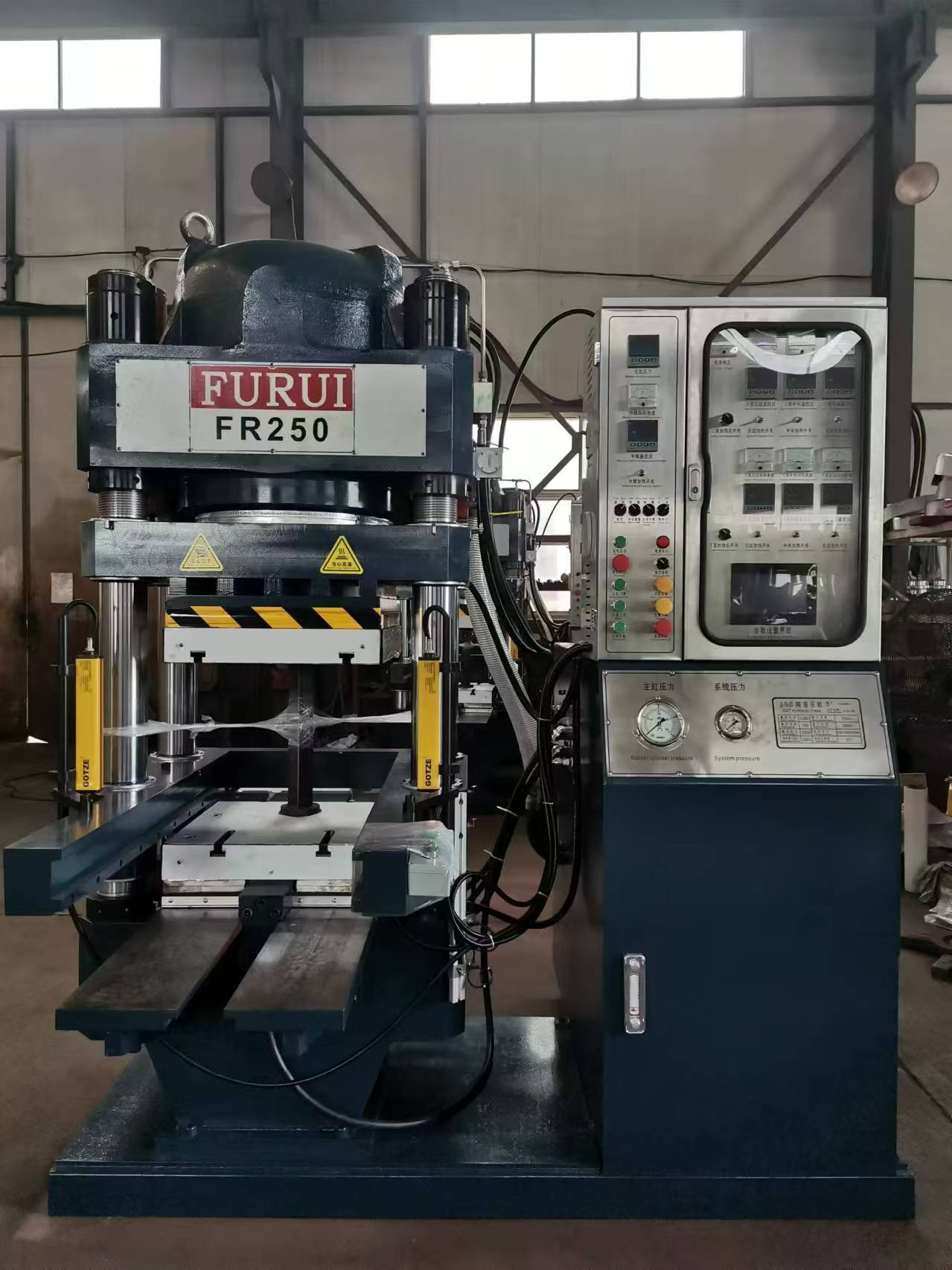

| 250 tons hydraulic press(Push out type) | |
|---|---|
| Rated pressure | 2500 KN |
| Motor power | 7.5 KW |
| Heating power | 12 KW |
| Maximum pressure of liquid | 16.0 MPa |
| Maximum stroke of hydraulic press | 350 mm |
| The Height of the table from the ground | 1000 mm |
| Hotplate size | 600*500*85 mm |
| Master cylinder diameter | 450 mm |
| Master cylinder fast-rise speed | 180 mm/sec |
| Master cylinder slow-rise speed | 9.25 mm/sec |
| Maximum opening distance of the press | 410 mm |
| Dimensions | 1950*1800*2400 mm |
| Total mass of the equipment | 5.8 T |

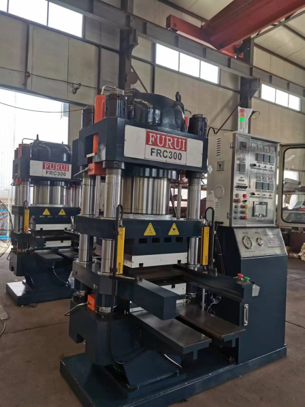

| 300 tons hydraulic press(Push out type) | |
|---|---|
| Rated pressure | 3000 KN |
| Servo motor power | 11 KW |
| Heating power | 12 KW |
| Maximum pressure of liquid | 19.0 MPa |
| Maximum stroke of hydraulic press | 350 mm |
| The Height of the table from the ground | 1000 mm |
| Hotplate size | 600*500*85 mm |
| Master cylinder diameter | 450 mm |
| Master cylinder fast-rise speed | 180 mm/sec |
| Master cylinder slow-rise speed | 9.25 mm/sec |
| Maximum opening distance of the press | 410 mm |
| Dimensions | 1500*1800*2400 mm |
| Total mass of the equipment | 5.8 T |

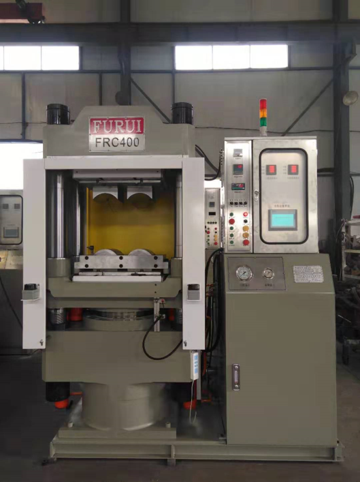

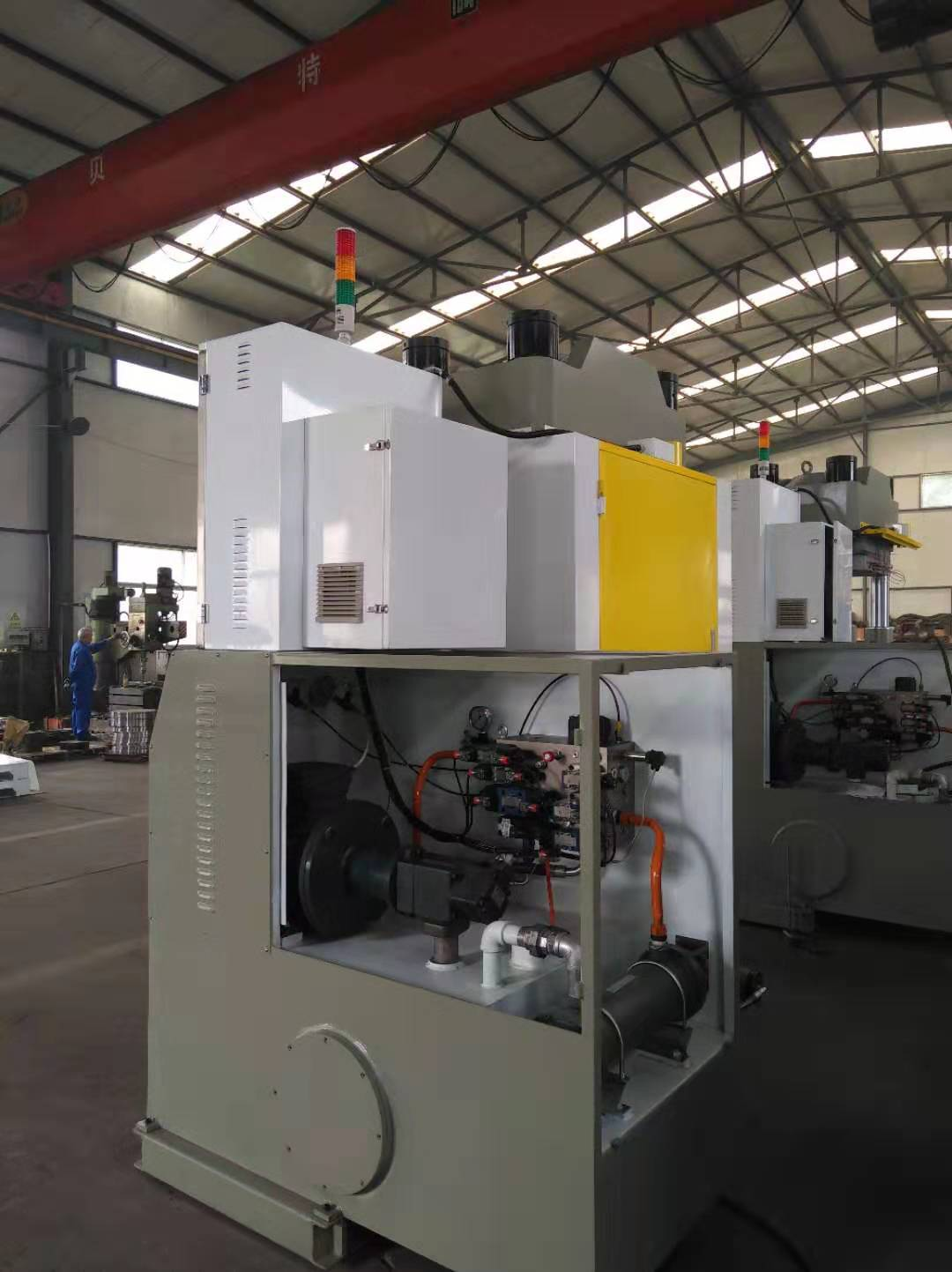

| 400 tons hydraulic press | |
|---|---|
| Rated pressure | 4000 KN |
| Servo motor power(frequency conversion) | 11 KW |
| Heating power | 18 KW |
| Maximum pressure of liquid | 20.5 MPa |
| Maximum stroke of hydraulic press | 500 mm |
| The Height of the table from the ground | 1130 mm |
| Hotplate size | 620*650*85 mm |
| Master cylinder diameter | 500 mm |
| Maximum opening distance of the press | 700 mm |
| Dimensions | 2000*1600*2500 mm |
| Total mass of the equipment | 8.0 T |

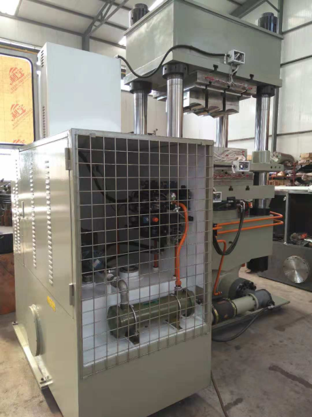

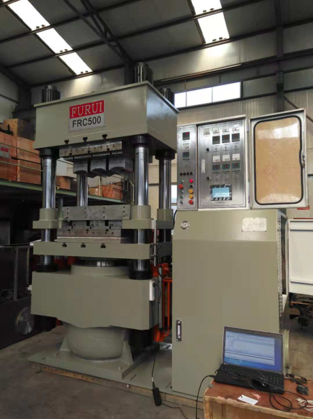

| 500 tons hydraulic press | |
|---|---|
| Rated pressure | 2000 KN |
| Motor power | 15.0 KW |
| Heating power | 18 KW |
| Maximum pressure of liquid | 18 MPa |
| Maximum stroke of hydraulic press | 450 mm |
| The Height of the table from the ground | 1200 mm |
| Hotplate size | 830*750*85 mm |
| Master cylinder diameter | 560 mm |
| Master cylinder fast-rise speed | 180 mm/sec |
| Master cylinder slow-rise speed | 9.25 mm/sec |
| Maximum opening distance of the press | 600 mm |
| Dimensions | 2690*1700*3200 mm |
| Total mass of the equipment | 15.8 T |

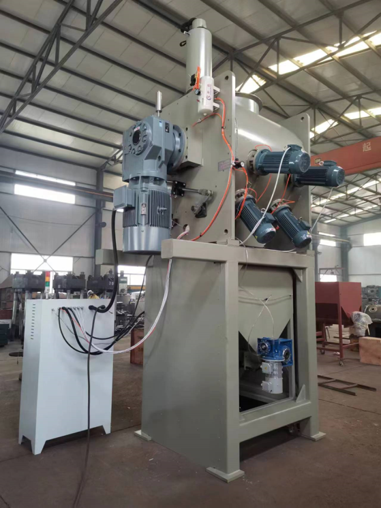

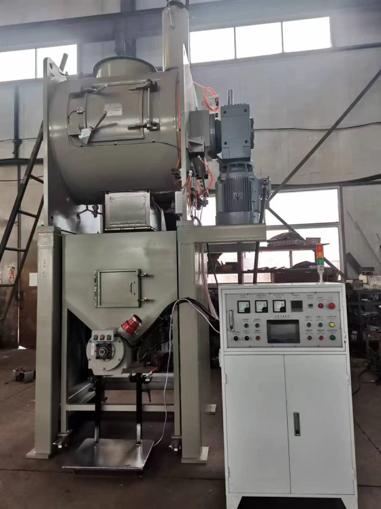

| 1200 liter mixing machine + Packaging weighing machine | |
|---|---|
| Effective volume | 1200 L |
| Working capacity | 400-850 L |
| Spindle motor power | 37 KW |
| Spindle speed | 108 r/min |
| Barrel linear velocity | 7 m/sec |
| High-speed blender motor power(4 unit) | 4 * 7.5 KW |
| High-speed blender speed | 2950 r/min |
| Compressed air pressure | 0.25-0.6 MPa |
| Compressed air usage | 0.4 /min |
| Total installed capacity | 67 KW |
| Total mass of the equipment | 3.4 T |

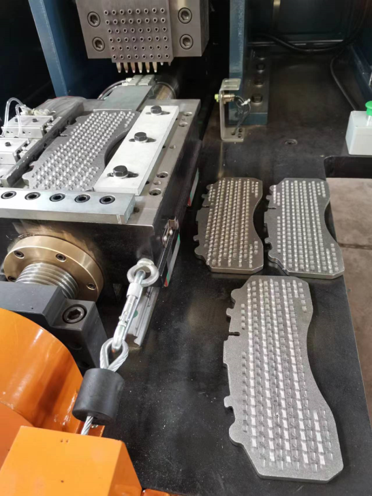

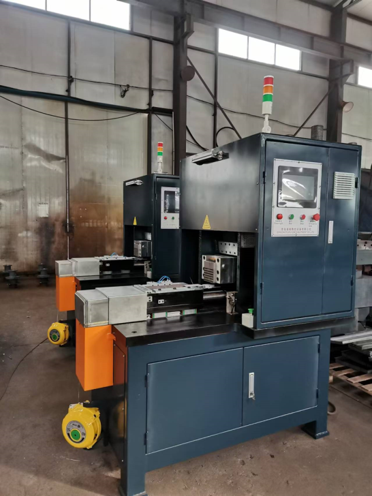

| Hook stabbing machine | |
|---|---|
| Total device power | 9.5 KW |
| Servo motor power | 2 KW |
| Cam motor power | 7.5 KW |
| One-way barb row spacing | 20 mm |
| Combined barb row spacing | 10 mm |
| Efficiency | 17.2 per second |
| Dimensions | 1600*800*2050 mm |
| Total mass of the equipment | 1100 KG |

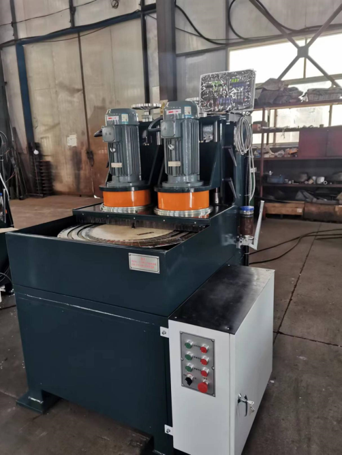

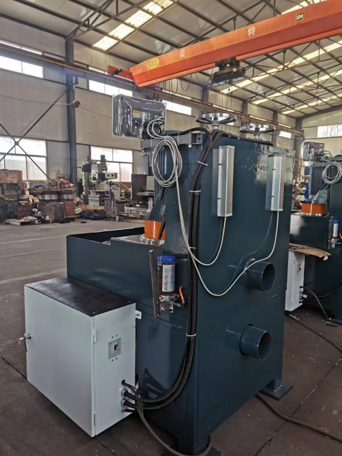

| Electromagnetic grinding Machine | |
|---|---|
| Power of rotary motor (frequency conversion motor) | 2.2 KW |
| Grinding head motor power (2 sets) | 2*7.5 KW |
| Grinding head motor speed | 2850 r/min |
| Working table speed | 0.5-3.0 r/min |
| Grinding wheel diameter | Φ255 mm |
| Flatness of grinding plane | ≤ 0.1 mm |
| Magnetic disk size | 800 mm |
| Size of suction port (quantity * outside diameter) |
2*Φ150 mm 2*Φ100 mm |
| Efficiency | 8000-10000 pieces/hour |
| Dimensions | 1300*1250*1760 mm |
| Total mass of the equipment | 1800 KG |

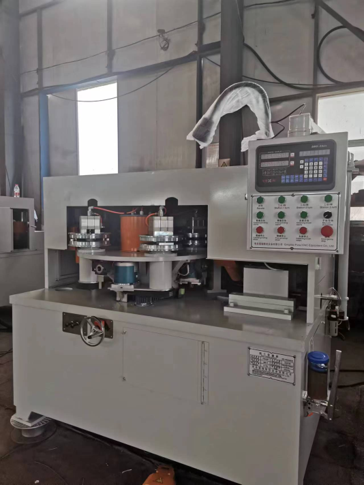

| Four-station grinder | |
|---|---|
| Finishing grinding wheel | φ130*75*45 |
| Coarse grinding wheel | φ250*33*100 |
| Power of driving motor (2 sets) |
5.5 KW 7.5KW |
| Drive motor speed | 2890 r/min |
| Pneumatic clamping force | 300 KG |
| compressed air (Requirements for customers) | 0.5 MPa |
| Air demand pressure (Requirements for customers) | 0.5-0.8 MPa |
| Tire speed | 8.5 r/min |
| Driving motor power of clamping fixture (4 sets) | 4*150 W |
| Speed of driving motor for clamping fixture | 60 r/min |
| Power and Speed of indexing motor |
150 W 60 r/min |
| Power and Speed of ash brushing motor |
150 W 515-2850 r/min |

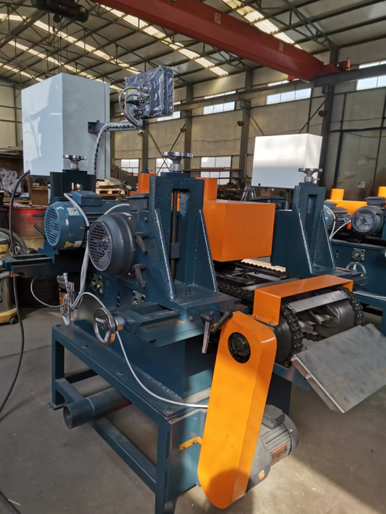

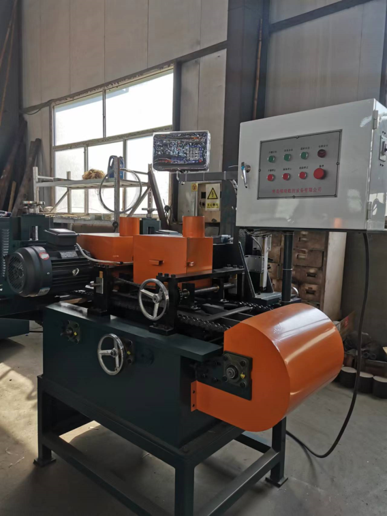

| Slotting and chamfering machine | |
|---|---|
| Slotting motor power | 5.5 KW |
| Chamfering motor power(2 sets) | 2*4.0 KW |
| Conveying motor power | 750 W |
| Transmission speed | 0.5-2.4 m/min |
| Chamfering grinding wheel | Φ240*50*30*20 |
| Diamond cutting discs | Φ250*40*2.8 |
| Wheel tilt angle | ±3.5 |
| Width of chamfering friction material | 230 mm |
| Productivity(8 hours) | 7000-10000 pieces |
| Dimensions | 1700*1500*1750 mm |
| Total mass of the equipment | 950 KG |

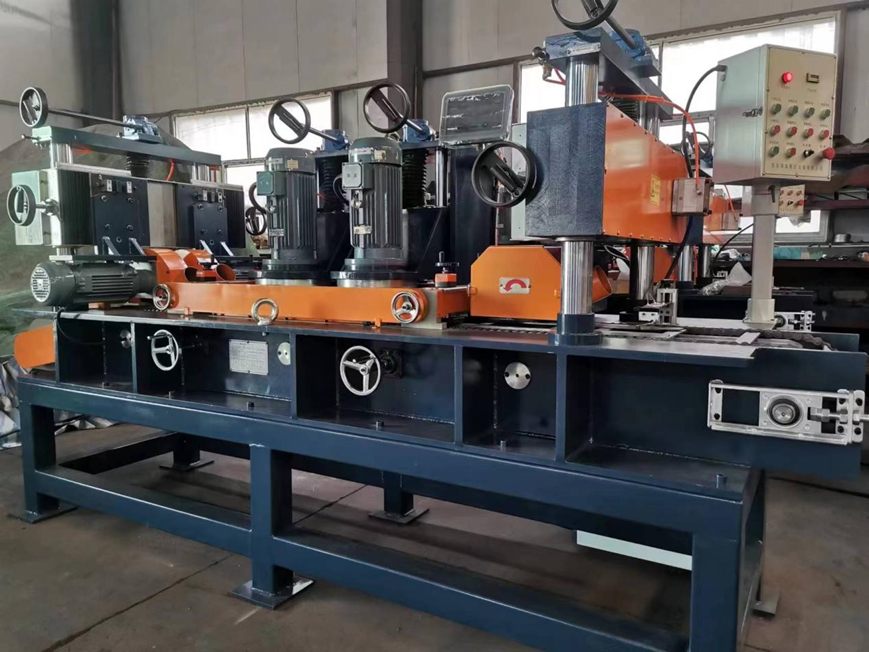

| Flat grinding slotting chamfering machine | |
|---|---|
| Rated voltage | 380 V |
| Rated power | 30 KW |
| Slotting motor power | 5.5 KW |
| Chamfering motor power(2 sets) | 2*4.0 KW |
| Flat grinding motor power(2 sets) | 2*7.5 KW |
| Conveying motor power | 750 W |
| Production line operating speed(adjustable) | 75 mm/s |
| Maximum length of workpiece | 200 mm |
| Productivity | 1250 pieces/hour |
| Dimensions | 3300*1300*1800 mm |
| Total mass of the equipment | 3350 KG |
